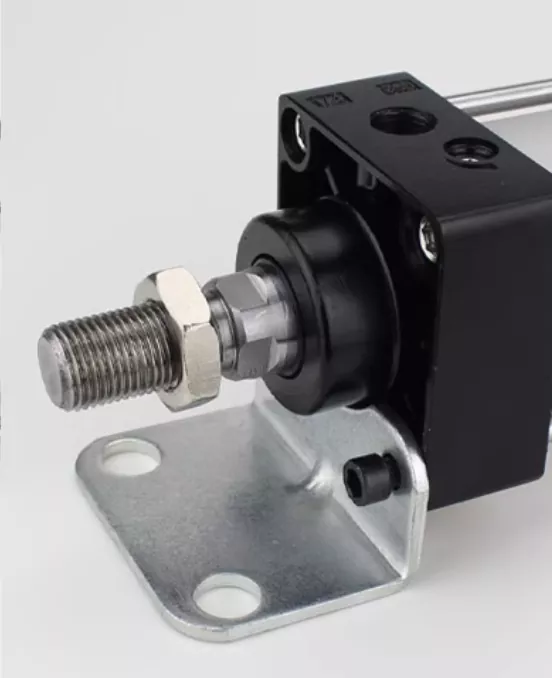

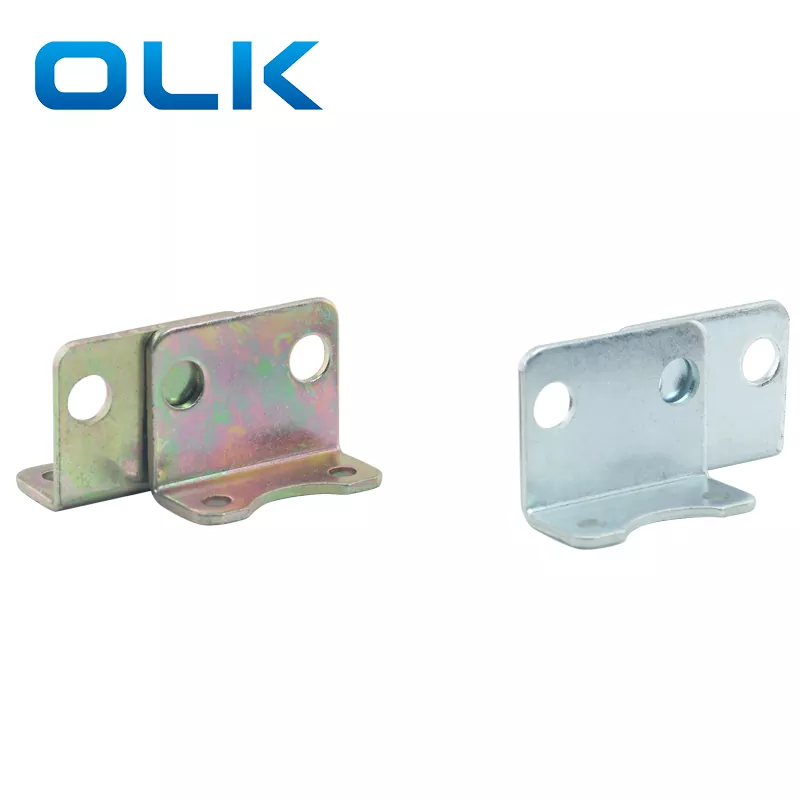

OLK PNEUMATIC SC series pneumatic cylinder mounting accessory-LB foot bracket adopting an L-shaped design, one cylinder uses two fixed parts.The silver color of the iron zinc plated material has a more stylish feel.
LB foot bracket install below both end of cylinder. Fixed to the installation surface through the bottom screw hole.Due to its large support surface with the ground, it is more stable and earthquake resistant compared to other accessories, and has strong load-bearing capacity, making it suitable for fixed installation of large bore cylinders in static situations.
In situations where high structural stability is required, such as automated production lines, robotic arm fixed platforms, stamping devices, etc.
LB foot bracket needs to note that each pneumatic cylinder requires 2 PCS , so when placing an order, it is important to pay attention.
|

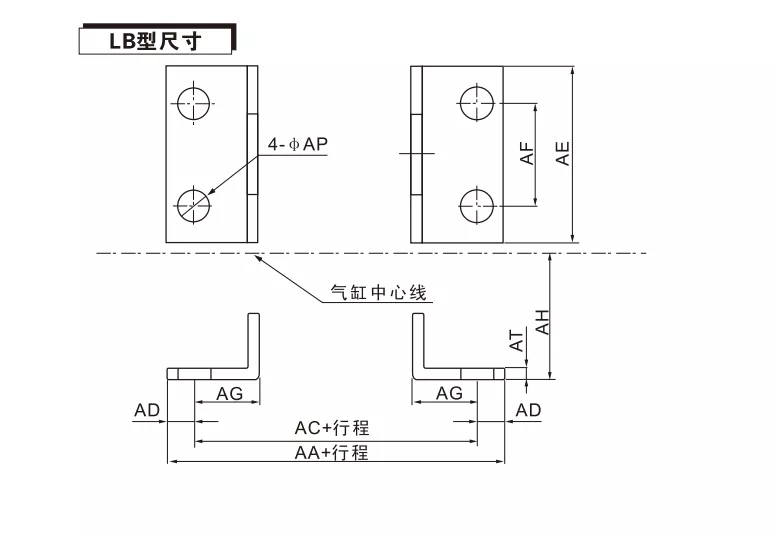

Code / Bore Diameter |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
AA |
153 |
169 |
173 |
184 |
199 |
209 |
290 |
340 |
380 |
|
AC |
134 |
140 |
149 |
158 |
167 |
173 |
250 |
300 |
320 |
|
AD |
9.5 |
14.5 |
12 |
13 |
16 |
18 |
20 |
20 |
30 |
|
AE |
50 |
57 |
68 |
80 |
97 |
112 |
140 |
180 |
220 |
|
AF |
33 |
36 |
47 |
56 |
70 |
84 |
90 |
115 |
175 |
|
AG |
20.5 |
23.5 |
28 |
31 |
30 |
30 |
45 |
60 |
70 |
|
AH |
28 |
30 |
36.5 |
41 |
49 |
57 |
90 |
115 |
135 |
|
AP |
9 |
12 |
12 |
12 |
14 |
14 |
16 |
18 |
22 |
|
AT |
3 |
3 |
3 |
3 |
4 |
4 |
8 |
8 |
9 |
How many types of LB mounting foot are there?
Different series of cylinders have LB brackets.
etc:ACQ-LB; SDB-LB; MAL-LB; CDM2B-LB; SDA-LB; RMS-LB; SC-LB
What SC-LB foot bracket material?
The LB material is iron, one is silver plated, and the other is multicolored plated. The customer needs someone who can contact the OLK sales team for consultation.
